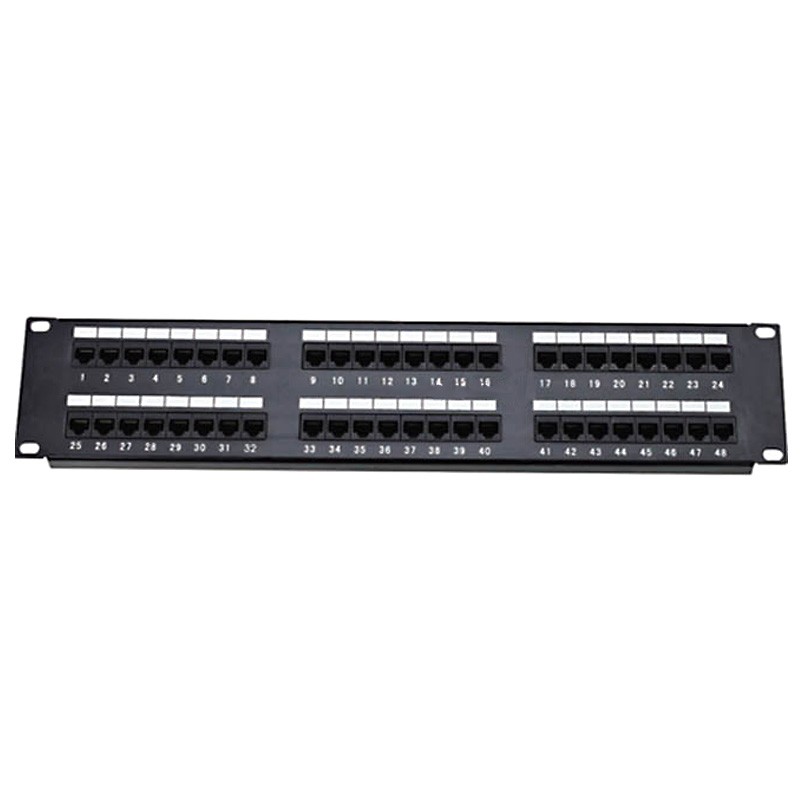

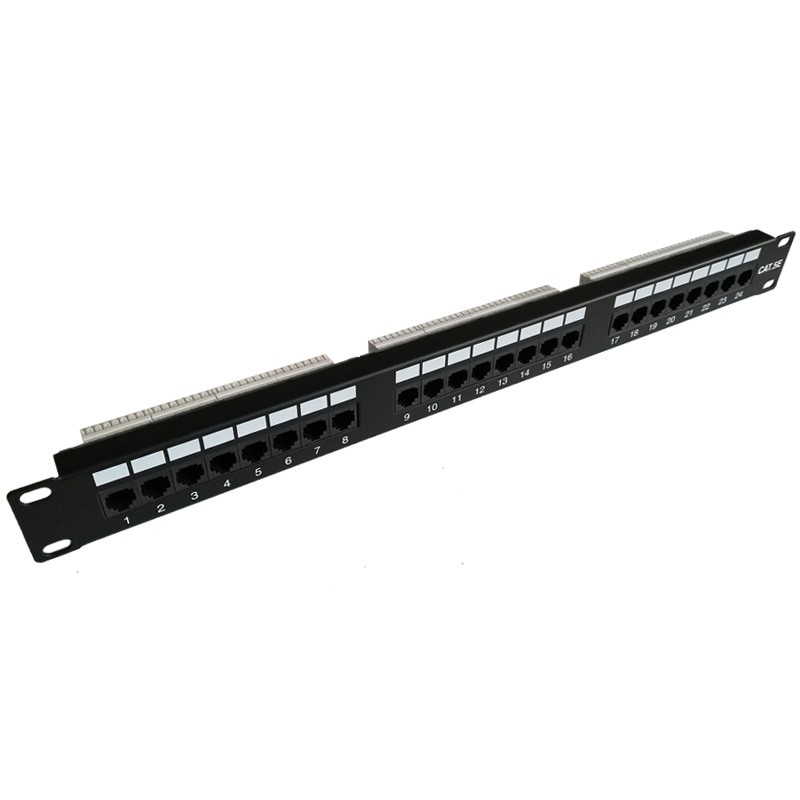

Cat5e/Cat6 UTP Patch Panel 19" 24Port 1U 48Port 2U
Item: 8Port * 3 Patch Panel
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 7-15 days
Payment Method: T/T, Western Union
Order Information:
PPU524D-TS Patch Panel 19” UTP Cat5e 24Port 1U 110&Krone Dual Use IDC
PPU624D-TS Patch Panel 19” UTP Cat6 24Port 1U 110&Krone Dual Use IDC
PPU548D-TS Patch Panel 19” UTP Cat5e 48Port 2U 110&Krone Dual Use IDC
PPU648D-TS Patch Panel 19” UTP Cat6 48Port 2U 110&Krone Dual Use IDC
Specification:
Meet ANSI/TIA/EIA 568B.2 , ISO/IEC11801 & EN50173
Universal TIA/EIA 568A and 568B Labeling
19inchx1.75inch(1U), 19inchx3.5inch(2U)
24 or 48xUnshielded RJ45 Jacks
Jack: RJ45 8P8C, 3～50 micro-inch gold plating over nickel plated on contact area
IDC: PC UL94V-0, White color, 110 IDC, Krone IDC, 110&Krone Dual Use IDC optional
Accept 22-26AWG solid wire
With support hole for cable ties
Metal plate housing, black color painting
