FTTH Distribution box 16Port SC white Outdoor use / DB3-SC16
P/N: DB3-SC16
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union

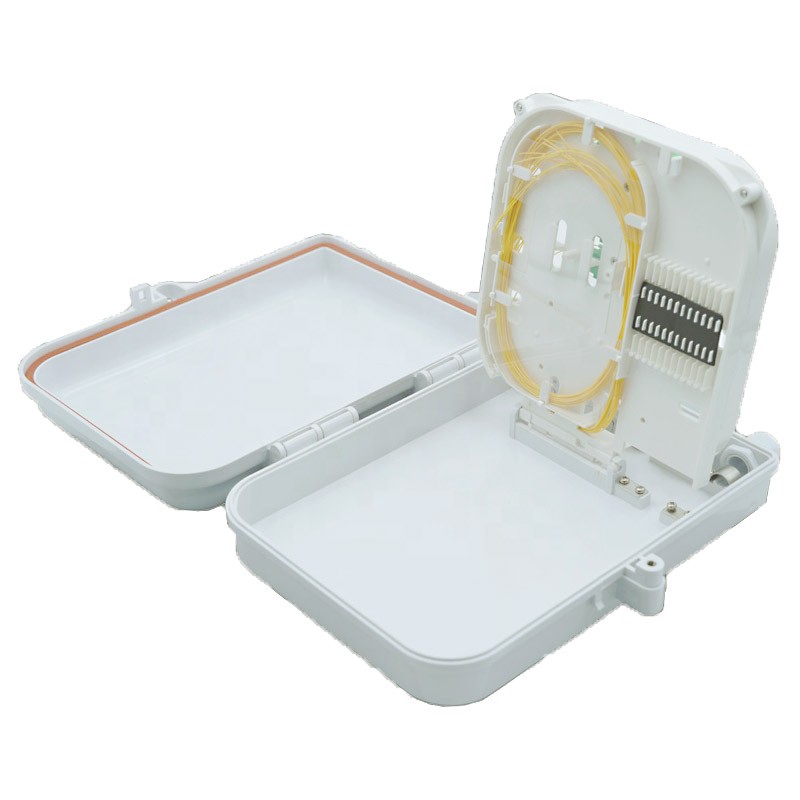

DB3-SC16 FTTH Distribution box 16Port SC white Outdoor use
Features:
- Size: H320*W260*D90mm , 1.85kg
- Widely used in FTTH access network
- For outdoor or indoor wall and pole mounting
- Suitable for 16 SC simplex or 8 LC duplex adapters
- Max splice capacity: 16 cores
- It can accommodate 1*8 (2pcs) or 1*16 (1pc) steel pipe type PLC splitter
- User familiar industry interface, using high impact plastic
- Waterproof IP66
- Anti-UV, Ultra violet resistant and rainfall resistant
- The Operating Temperature is -45℃ to +65℃
- Up to 16 FTTH drops
- 2 inlet ports, 16 outlet ports , Cable diameter (mm) : Φ6~Φ12
- Lockable and include fixation and splicing accessories
