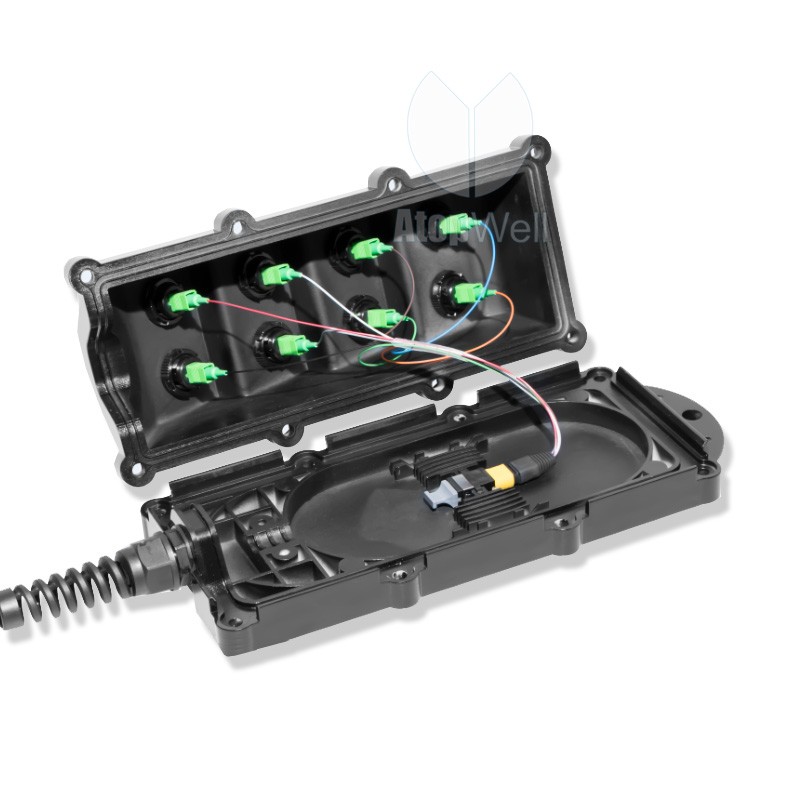

FTTH FTTA Waterproof distribution box 6/8/12Port IP67
P/N: DB7-FTTA
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union

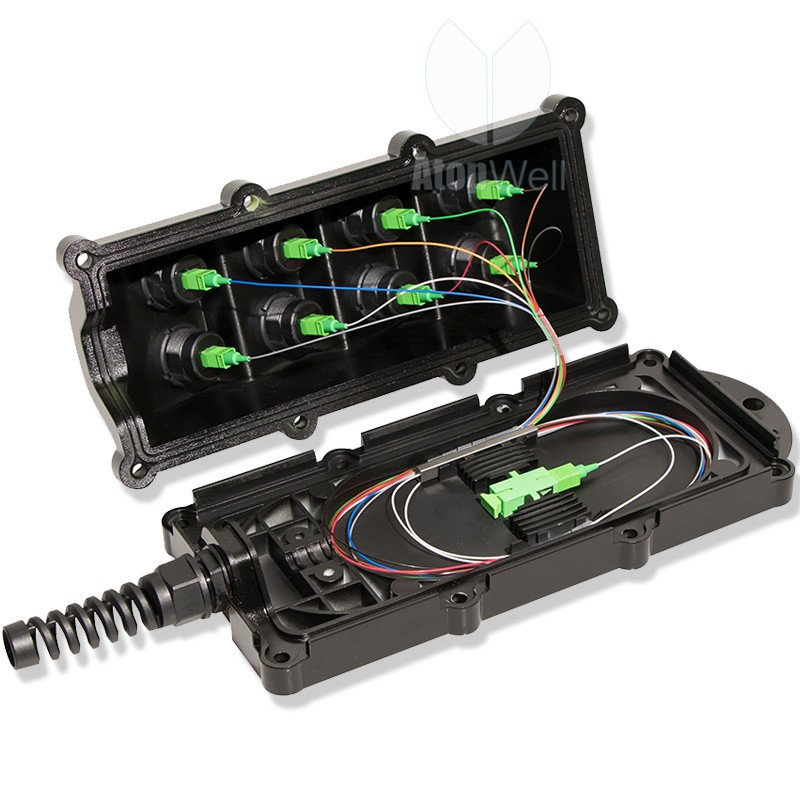

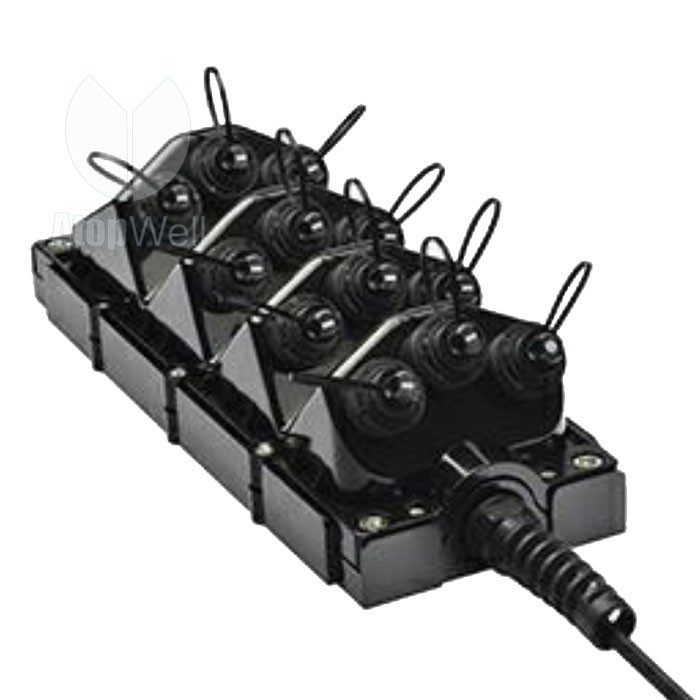

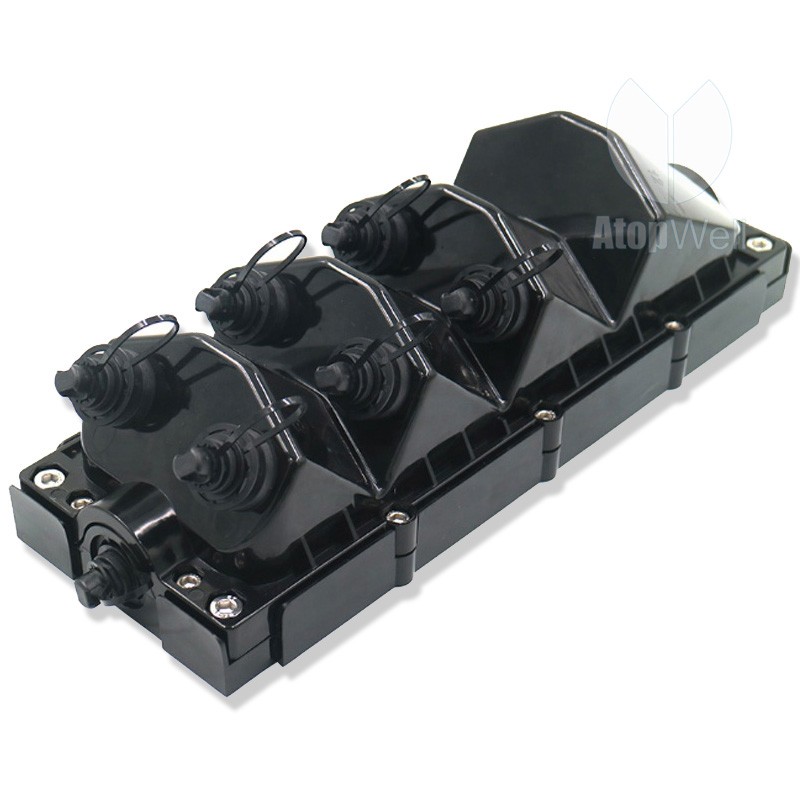

DB7-FTTA FTTH FTTA Waterproof distribution box 6/8/12Port IP67

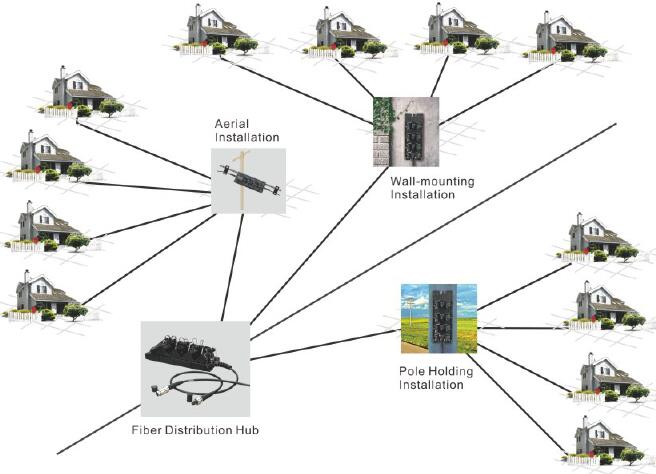

This is a new economic fiber distributed solution for outdoor use. It is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. It is not only used in FTTH field, but also used in FTTA or other harsh environment field.
Application:
1. FTTH field
2. FTTA field
3. Trunk cable connecting

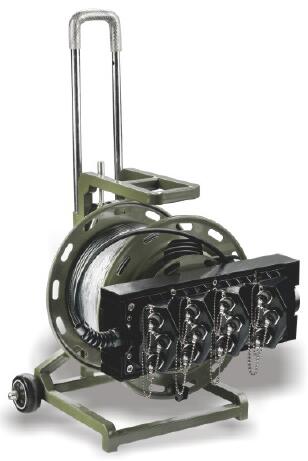

4. Prospecting or military communications.
Features:

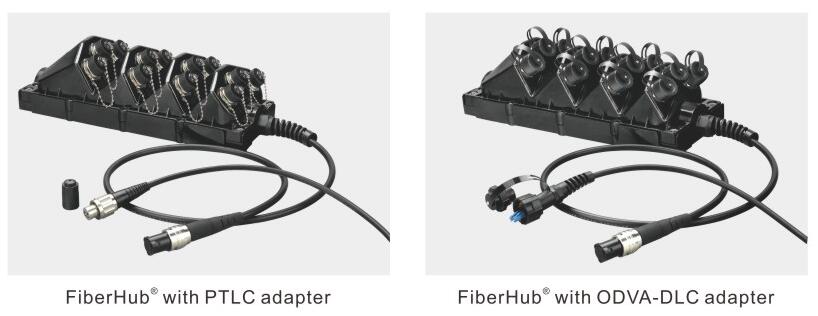

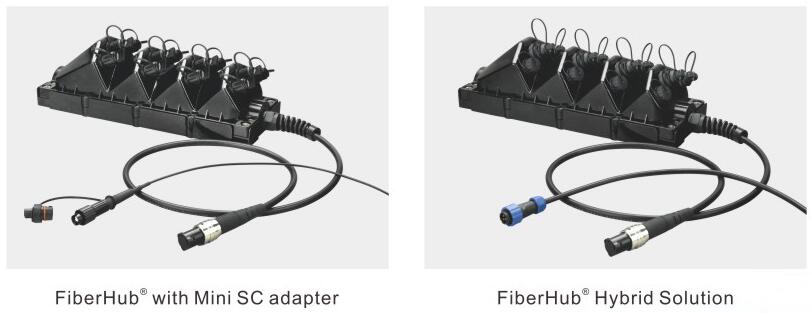

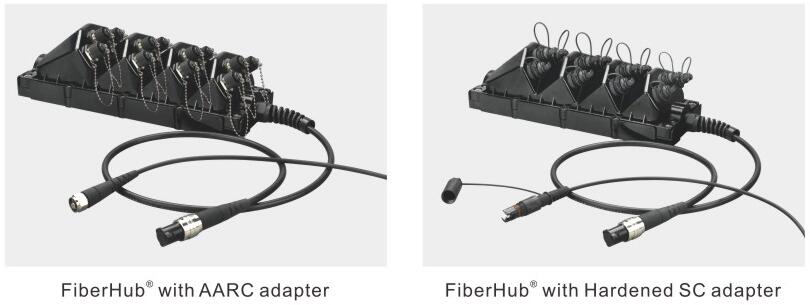

- High compatibility: can be assembled ODVA, Hconn(OptiTap compatible), Mini SC, AARC, PTLC, PTMPO or Power adapter
- Factory-sealed or field assembly
- Strong enough: working under 1200N pulling force long term
- From 2 to 12 ports for single or multifiber harsh connectors
- Available with PLC or Splice sleeve for fiber divide
- IP67 waterproof rating
- Wall-mounting, aerial installation or holding pole installation
- Decreased angle surface and height make sure no connector interfering when operating
- Meet IEC61753-1 standard
- Cost effective: save 40% operating time

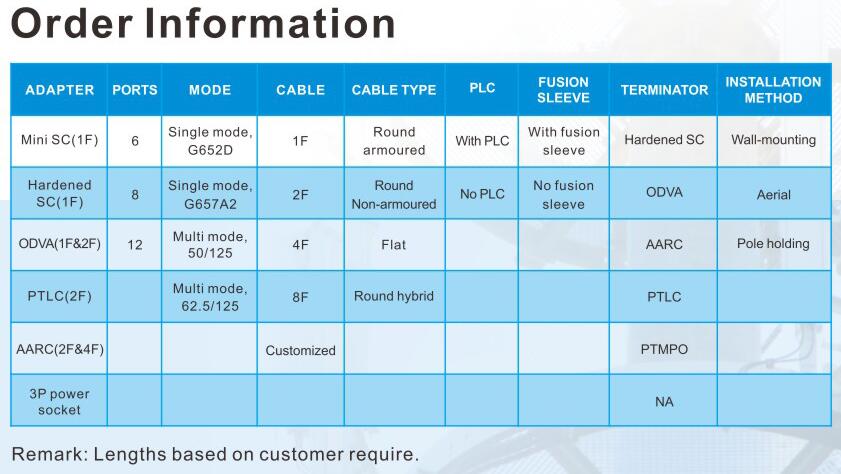

Specification
Size: 365x137x90mm(without cover); 375x142x120mm(with cover)
Ingress protection: IP67
Cable strength member: Armoured or Non-armoured
Cable type: Hybrid or non-hybrid
Round Cable OD: 5.0mm to 14mm
Flat cable dimension: 4.6x8.9mm
Cable jacket material: LSZH, PE or TPU
Bending Radius: 20D
Cable crush resistance: 200N/cm long term
Tensile strength: 1200N long term
UV resistance: ISO4892-3
Fire protection rating: UL94-V0
Number of PLC: 1 to 2pcs
Number of fusion protection sleeve: 1 to 24pcs
