Fiber Optic Mode Conditioning Patch Cord LC to LC
P/N: CPC222-2M
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union

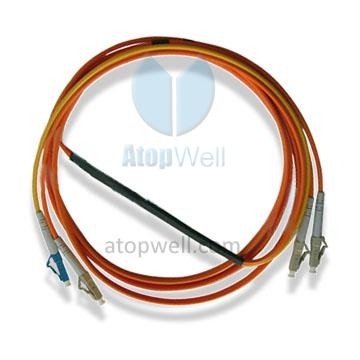

Fiber Optic Mode Conditioning Patch Cord LC to LC
2xLC 50/125 to 1xLC 50/125 and 1xLC 9/125, 2M
2xLC 50/125 to 1xLC 50/125 and 1xLC 9/125, 2M

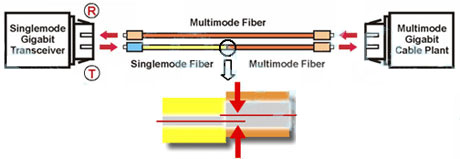

Our mode conditioning patch cords (MCP) are designed to eliminate Differential Mode Delay(DMD) effects which can occur when a single mode signal is launched into a multimode fiber.
They are especially suitable for applications where new Gigabit 1000 BASE-LX routers or switches are being deployed into existing multimode plants.
They allow customers an upgrade of their hardware technology without the costly upgrade of their fiber plant. Besides, the MCPs significantly improve data signal quality and increase the transmission distance.
Specifications:
| Characteristics | 62.5um | 50um |
| Attenuation (SM to MM) | <=0.5dB | |
| Return Loss (SM to MM) | >=26dB | |
| Coupled Power Ratio (CPR) | 28 to 40dB | 12 to 20dB |
| LX(1310nm) Operating Distance | 550m | 500m |
| Tensile strength | >=10kg | |
| Operating Temperature | -10°C ~ +70°C | |
| Storage Temperature | -40°C ~ +70°C | |
