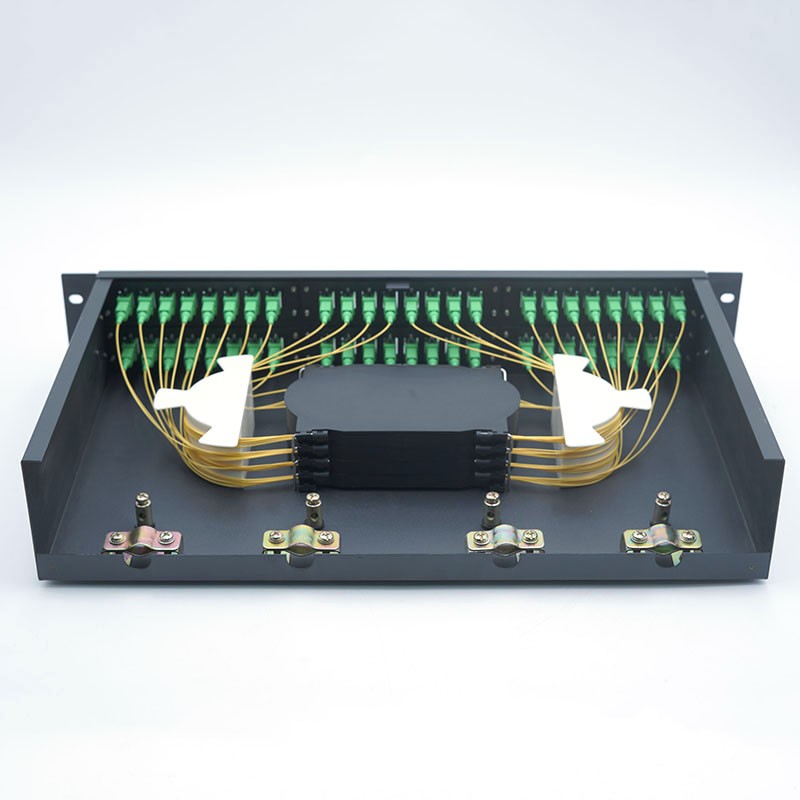

Fiber Optic Patch Panel Fixed type 19" 1U 2U - PPF1
P/N: PPF1
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union
Fiber Optic Patch Panel Fixed type 19' 1U 2U - PPF1
Features:
-19’’ standard structure , rack mounted
- The body is made of cold rolled steel sheet with electrostatic spraying.
- 4 cable entrance at rear, 3 parts front panel
- available for the installation of FC,SC,ST,LC adapter
- 12, 24, 48ports are available
- Max.capacity 48fibers
Order Information:
P/N | Dimension(mm) | Adapter type | Port Qty | Max.Capacity (cores) |
PPF1-SC12 | 430x250x1U | SC simplex | 12 | 12 |
PPF1-SC24 | 430x250x1U | SC simplex | 24 | 24 |
PPF1-SC48 | 430x250x2U | SC simplex | 48 | 48 |
PPF1-SCD12 | 430x250x1U | SC duplex | 12 | 24 |
