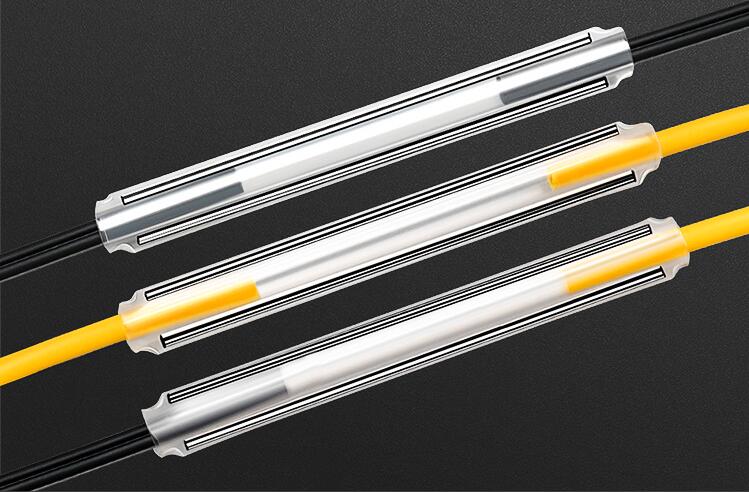

Fusion Splice Protection Sleeve
P/N: Protection Sleeve
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-5 days
Payment Method: T/T, Western Union
Fusion Splice Protection Sleeve 40mm, 45mm,50mm,55mm,60mm, for single 0.9mm fiber cable, FTTH drop cable.
This Fusion Splice Protection Sleeve is made up of heat-shrinkable tube, hot-melt tube and stainless steel needle.
Features:
Inner material: Hot-melt tube Ethylene Vinyl Acetate (EVA)
Outer Material: Irradiation cross-linked Polyolefin heat shrinkable tube
Reinforcing Pin: Deburred and polished Stainless steel
Splice Operating Temperature: -55℃ to + 100℃
This is specifically designed for the protection of fiber optical 0.9mm cable closure.
Single 0.9mm fiber cable Fusion Splice Protection Sleeve

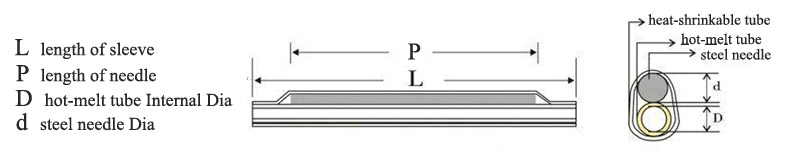

P/N | Heat-shrinkable tube | Hot-melt tube | Steel needle | Package | |||
Sleeve Dia After shrinkage (mm) | Length (L) (mm) | Internal Dia (D) (mm) | Length (mm) | Dia (d) (mm) | Length (P) (mm) | ||
PS-GT-60B | 2.5±0.1 | 60 | 1.7 | 60 | 1.2 | 54 | 100pcs/bag |
PS-GT-55B | 2.5±0.1 | 55 | 1.7 | 55 | 1.2 | 50 | 100pcs/bag |
PS-GT-50B | 2.5±0.1 | 50 | 1.7 | 50 | 1.2 | 45 | 100pcs/bag |
PS-GT-45B | 2.5±0.1 | 45 | 1.7 | 45 | 1.2 | 40 | 100pcs/bag |
PS-GT-40B | 2.5±0.1 | 40 | 1.7 | 40 | 1.2 | 35 | 100pcs/bag |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
This is specifically designed for the protection of fiber optical Drop cable closure.

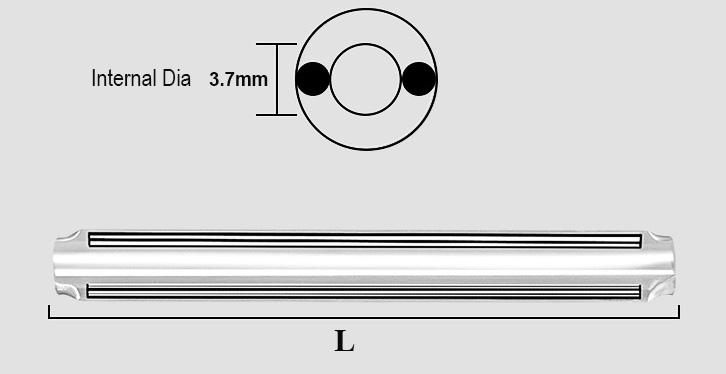

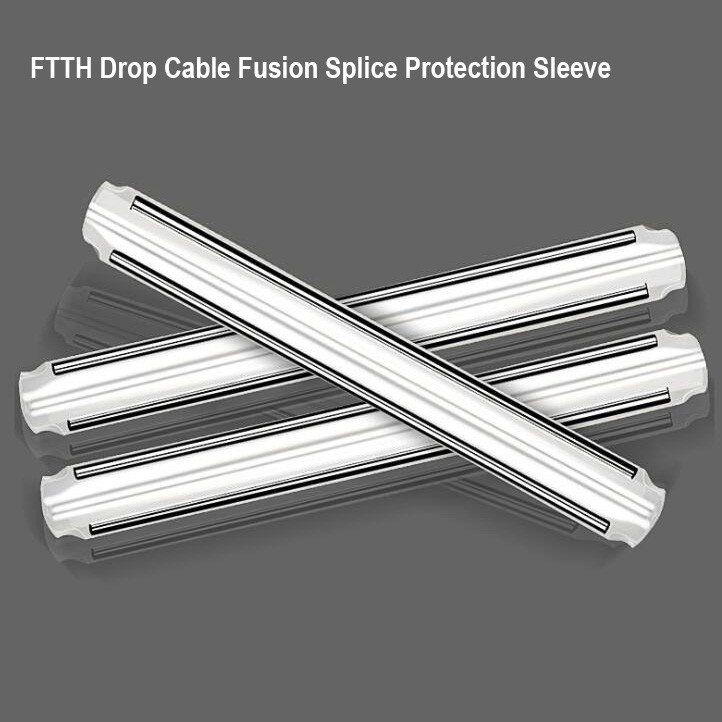

FTTH Drop Cable Fusion Splice Protection Sleeve
P/N | Heat-shrinkable tube | Hot-melt tube | Steel needle | Package | |||
Sleeve Dia After shrinkage (mm) | Length (L) (mm) | Internal Dia (D) (mm) | Length (mm) | Dia (d) (mm) | Length (P) (mm) | ||
PS-GT-60P | 3.2±0.1 | 60 | 3.7 | 60 | 1.2 | 54 | 100pcs/bag |
PS-GT-55P | 3.2±0.1 | 55 | 3.7 | 55 | 1.2 | 50 | 100pcs/bag |
PS-GT-50P | 3.2±0.1 | 50 | 3.7 | 50 | 1.2 | 45 | 100pcs/bag |
PS-GT-45P | 3.2±0.1 | 45 | 3.7 | 45 | 1.2 | 40 | 100pcs/bag |
PS-GT-40P | 3.2±0.1 | 40 | 3.7 | 40 | 1.2 | 35 | 100pcs/bag |
