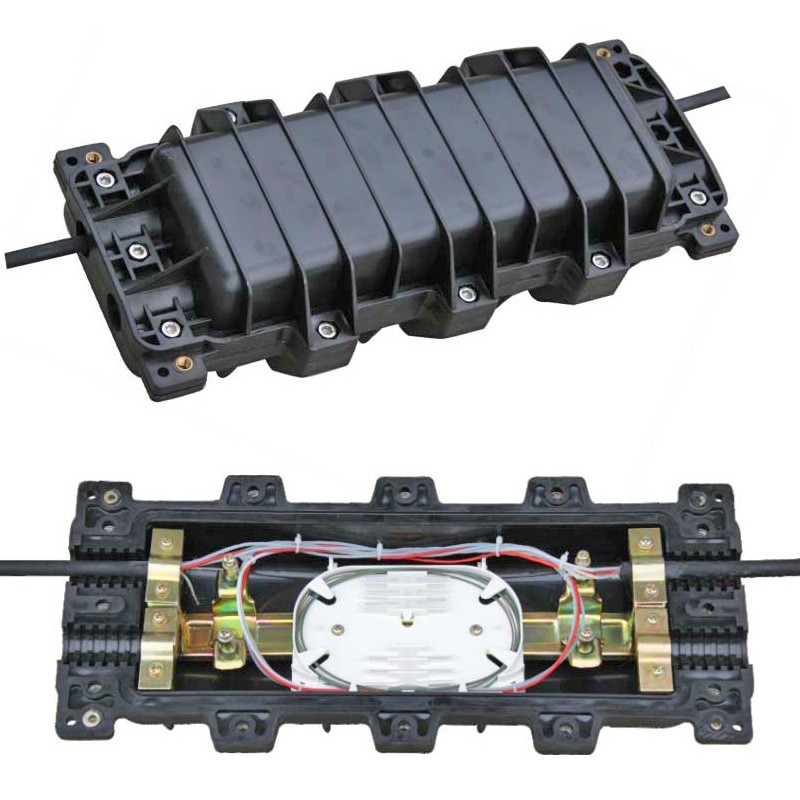

Horizontal Fiber Optic Splice Closure Max capacity 168f 2in 2out H042-168

P/N: H042-168

Packaging: Neutral or OEM service optional

MOQ: 1 Piece

Certificate: RoHS Compliant Material

Lead Time: 3-7 days

Payment Method: T/T, Western Union

Product Detail

H042-168 Horizontal Fiber Optic Splice Closure Max capacity 168 fibers 2 in 2 out

Features:

- Maximum capacity: 168 fibers

- Seal way: Mechanical Sealing / Sticky Cincture

- Cable inlet/outlet: 2 in and 2 out

- The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- The use of reusable components to open seal in order to ensure a good airtight waterproof performance.

- It can be reopened and reused without changing sealing material.
- Does not require special tools, easy to install and open the duplicate.

- The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.

- The application of temperature :-40℃～65℃

Order Information:

P/N	*Size(mm) LWH*	Fiber Capacity	No.of Trays	Cable Ports	Cable Diameter (mm)
H042-24	435190120	24	1	4	10-22mm
H042-48		48	2	4	10-22mm
H042-72		72	3	4	10-22mm
H042-96		96	4	4	10-22mm
H042-144		144	6	4	10-22mm
H042-168		168	7	4	10-22mm
