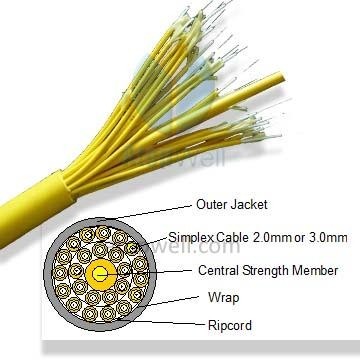

Indoor Fiber Optic Cable - Break-out Cable
P/N: B 123456
Packaging: Neutral or OEM service optional
MOQ: 1KM
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
Indoor Fiber Optic Cable - Break-out Cable
Break-out Cable (inner 2.0mm or 3.0mm simplex cable) | ||||||
P/N | B 123456 | |||||
Fiber core | 4 | 6 | 8 | 12 | 24 | |
Outer Diameter(mm) | 7.0 | 8.1 | 9.8 | 12.3 | 14 | |
Cable Weight(kg/km) | 45 | 62 | 84 | 138 | 170 | |
Tensile strength (N) | Long term | 200 | ||||
Short term | 660 | |||||
Crush resistance (N/100mm) | Long term | 300 | ||||
Short term | 1000 | |||||
Bending Radius(CM) | Dynamic | 20D | ||||
Static | 10D | |||||
Storage Operating Temperature | -20℃ to +60℃ | |||||
SMF | 50/125 | 62.5/125 | ||||
1310/1550nm | 850/1300nm | 850/1300nm | ||||
Attenuation (dB/km) | ,<=0.4/0.3 | <=3.5/1.5 | <=3.5/1.5 | |||
Min. Bandwidth (MHZ. km) | ------ | >=400/400 | >=160/500 | |||
1 = fiber core;
23 = outer diameter: 16:1.6; 20:2.0; 24: 2.4; 30:3.0
4 = fiber type: 9:OS1; 6:OM1; 2:OM2; 3:OM3; 4:OM4;
5 = Jacket material: R:PVC; L:LSZH; P:Plenum
6 = Jacket color: B:Blue; O:Orange; G:Green; N:Brown; E:Grey; W:White; R:Red; K:Black; Y:Yellow; V:Violet; P:Pink; A:Aqua
