LC APC SM MM OM3 OM4 OM5 simplex duplex Quad Fiber Optic Adapters
Item: LC Fiber Optic Adapter
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
LC APC SM MM OM3 OM4 OM5 simplex duplex Quad flangeless Fiber Optic Adapters
Order Information:
P/N | Description |

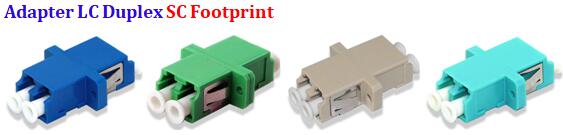

A2SDP-SC | Adapter LC SM, Duplex plastic, SC footprint |
A2ADP-SC | Adapter LC/APC , Duplex plastic, SC footprint |
A2MDP-SC | Adapter LC MM, Duplex plastic, SC footprint |
A23DP-SC | Adapter LC OM3, Duplex plastic, SC footprint |
A24DP-SC | Adapter LC OM4, Duplex plastic, SC footprint |
A25DP-SC | Adapter LC OM5, Duplex plastic, SC footprint |
Order Information:
P/N | Description |
A2SDP-SCW | Adapter LC SM, Duplex plastic, SC footprint with window |
A2ADP-SCW | Adapter LC/APC , Duplex plastic, SC footprint with window |
A2MDP-SCW | Adapter LC MM, Duplex plastic, SC footprint with window |
A23DP-SCW | Adapter LC OM3, Duplex plastic, SC footprint with window |
A24DP-SCW | Adapter LC OM4, Duplex plastic, SC footprint with window |
A25DP-SCW | Adapter LC OM5, Duplex plastic, SC footprint with window |
Order Information:
P/N | Description |
A2SDP-FL | Adapter LC SM, Duplex plastic, flangeless |
A2ADP-FL | Adapter LC/APC , Duplex plastic, flangeless |
A2MDP-FL | Adapter LC MM, Duplex plastic, flangeless |
A23DP-FL | Adapter LC OM3, Duplex plastic, flangeless |
A24DP-FL | Adapter LC OM4, Duplex plastic, flangeless |
A25DP-FL | Adapter LC OM5, Duplex plastic, flangeless |
Order Information:
P/N | Description |

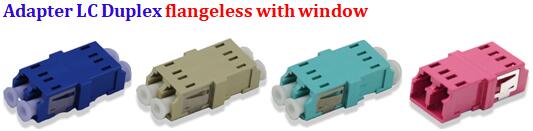

A2SDP-FLW | Adapter LC SM, Duplex plastic, flangeless with window |
A2ADP-FLW | Adapter LC/APC , Duplex plastic, flangeless with window |
A2MDP-FLW | Adapter LC MM, Duplex plastic, flangeless with window |
A23DP-FLW | Adapter LC OM3, Duplex plastic, flangeless with window |
A24DP-FLW | Adapter LC OM4, Duplex plastic, flangeless with window |
A25DP-FLW | Adapter LC OM5, Duplex plastic, flangeless with window |
Order Information:
P/N | Description |
A2SQP | Adapter LC SM, Quad plastic |
A2AQP | Adapter LC/APC , Quad plastic |
A2MQP | Adapter LC MM, Quad plastic |
A23QP | Adapter LC OM3, Quad plastic |
A24QP | Adapter LC OM4, Quad plastic |
A25QP | Adapter LC OM5, Quad plastic |
Order Information:
P/N | Description |

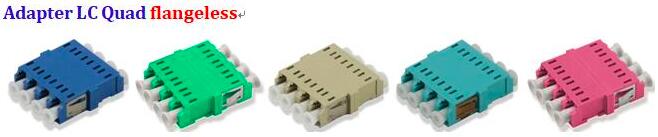

A2SQP-FL | Adapter LC SM, Quad plastic, flangeless |
A2AQP-FL | Adapter LC/APC , Quad plastic, flangeless |
A2MQP-FL | Adapter LC MM, Quad plastic, flangeless |
A23QP-FL | Adapter LC OM3, Quad plastic, flangeless |
A24QP-FL | Adapter LC OM4, Quad plastic, flangeless |
A25QP-FL | Adapter LC OM5, Quad plastic, flangeless |
Order Information:
P/N | Description |
A2SSP | Adapter LC SM, Simplex plastic |
A2ASP | Adapter LC/APC , Simplex plastic |
A2MSP | Adapter LC MM, Simplex plastic |
A23SP | Adapter LC OM3, Simplex plastic |
A24SP | Adapter LC OM4, Simplex plastic |
A25SP | Adapter LC OM5, Simplex plastic |
A2SDP-HL | Adapter LC SM, Duplex plastic, High and Low type |
A2ADP-HL | Adapter LC/APC , Duplex plastic, High and Low type |
A2MDP-HL | Adapter LC MM, Duplex plastic, High and Low type |
A23DP-HL | Adapter LC OM3, Duplex plastic, High and Low type |
A24DP-HL | Adapter LC OM4, Duplex plastic, High and Low type |
A25DP-HL | Adapter LC OM5, Duplex plastic, High and Low type |
Specification:
Insertion loss<=0.2dB
Durability (500 Mating): 0.2dB Max Increase
Sleeve Material: Ceramic
Operating Temperature: -40°c~85°c
Storage Temperature: -40°c~85°c
Product Package:
25pcs per blister packing for Duplex LC Adapter
20pcs per blister packing for Quad LC Adapter
