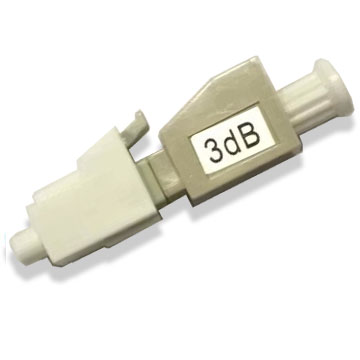

LC Plug-in Type Fixed Attenuator
Item: LC Plug-in Type Fixed Attenuator
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
LC Plug-in Type Fixed Attenuator
Order Information

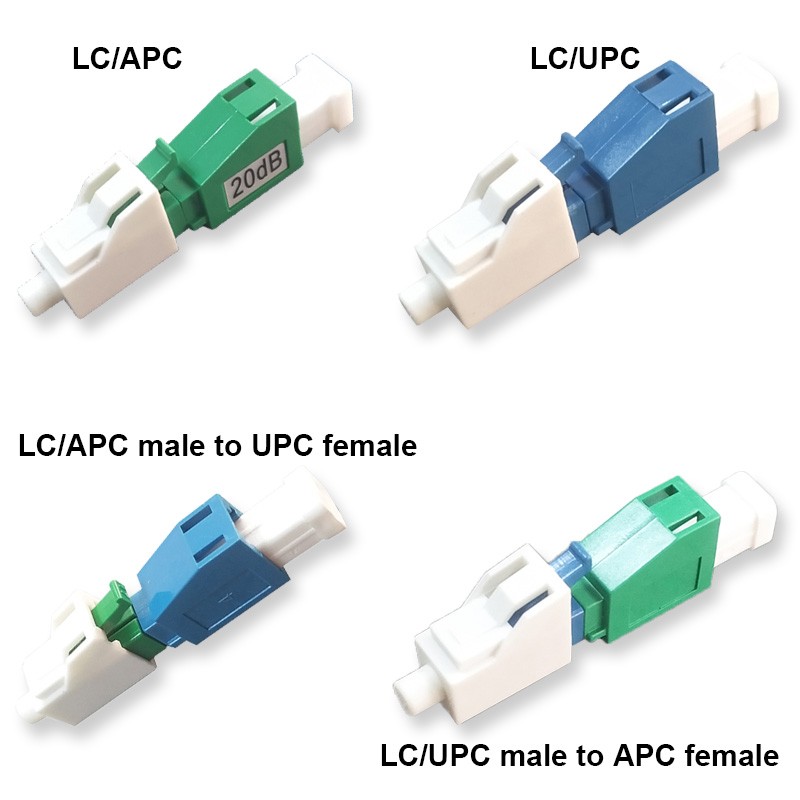

P/N | Description |
ATP2US-SL | LC/UPC Plug-in Fixed attenuator, SM Slim |
ATP2AS-SL | LC/APC Plug-in Fixed attenuator, SM Slim |
ATP2AMUFS-SL | LC/APC male to UPC female Plug-in Fixed attenuator, SM Slim |
ATP2UMAFS-SL | LC/UPC male to APC female Plug-in Fixed attenuator, SM Slim |
Plug-in attenuator 0-25dB available
-------------------------------------------------------------------------------------------------------------------------
ATP2UM-SL LC/UPC Plug-in Fixed attenuator, MM Slim ( 0-25dB available)
Technical Parameter:
Operating Wavelength: SM: 1310nm, 1550nm
Attenuation Range: 1~25dB
Return loss: >= 50dB (UPC) , >= 60dB (APC)
Attenuation Accuracy: +/-0.5 (1~10dB) +/-1.0(11~25dB)
Polarization Dependent Loss: Less than 0.1dB
Max.Optical Input Power: 200mW
Operating Temp Range: -40~75°C
Product Package:
Each one is packed by a single PE bag with test report.
