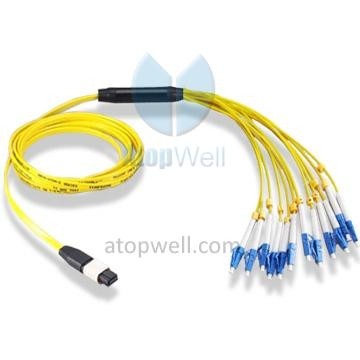

MPO-LC Harness Cable /Fan Out Patch cord SM 12f (Flat Ribbon,Branch 2.0mm)
P/N: MPC99A2UR62R-XX
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
MPO-LC Harness Cable /Fan Out Patch cord SM 12f (Flat Ribbon,Branch 2.0mm)
Features and Applications:
-For transition from trunk backbone assemblies to fiber rack system
-MTP/ MPO on one end, with single-fiber connectors on another end
-MTP/ MPO in 8/12/24 fiber interface for choices
-Single-fiber connector interface available in LC, SC, ST, E2000, MTRJ, Mini-LC in forms of Simplex or Duplex
-Customized furcation length to cater for different installation situations
-Ruggedized fanout: Round or Square fanout kit with 0.9/2.0/3.0mm legs to single-fiber connectors
-Corning fiber available for selection
Specifications:
MTP/ MPO Termination
Item | SM (APC Polish) | MM (PC Polish) | ||
Fiber Count | 8,12,24 etc | 8,12,24 etc | ||
Fiber Type | G652D, G657A1,etc | OM1,OM2,OM3,OM4,etc | ||
Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
<=0.7dB | <=0.35dB | <=0.5dB | <=0.35dB | |
Return Loss | >=55dB | >=20dB | ||
Durability | >=200times | >=200times | ||
Test Wavelength | 1310/1550nm | 850/1300nm | ||
Operating Temperature | -40℃ to +75℃ | -40℃ to +75℃ | ||
Storage Temperature | -40℃ to +75℃ | -40℃ to +75℃ | ||
Generic Connector Termination:
Item | SM (APC Polish) | SM (UPC Polish) | MM (PC Polish) |
| Insertion Loss | <=0.3dB | <=0.3dB | <=0.3dB |
| Return Loss | >=60dB | >=55dB | >=25dB |
Durability | >=500times | >=500times | >=500times |
Test Wavelength | 1310/1550nm | 1310/1550nm | 850/1300nm |
Operating Temperature | -40℃ to +75℃ | -40℃ to +75℃ | -40℃ to +75℃ |
Cable Structure for reference only:
3D Interferometer test report:
