SFP Transceiver
P/N: 1.25G SFP
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
SFP Transceiver
SFP Transceiver/Module is a compact optical module used in optical communications. The SFP is short for small form-factor pluggable and also called Mini-GBIC. The SFP fiber module has many applications in both telecommunication and data communications. It was designed to support SONET/SDH, Fast/Gigabit Ethernet, Fibre Channel and other communications standards.
We AtopWell provides various types of SFP fiber transceivers including
100M SFP,
155M SFP OC-3/STM-1,
622M SFP OC-12/STM-4,
1.25G SFP,
2.67G SFP OC-48/STM-16,
2.125G SFP, 4.25G SFP,
CWDM & DWDM SFP, BIDI SFP and Copper & SGMII SFP.
SFP with special parameters can be also customized up to customers' requirements. In addition, we AtopWell offers cost-effective SFP compatible with equipment such as Cisco, HP, Juniper, NETGEAR, Finisar, Dell, etc. All the SFP transceiver modules are 100% tested before shipping and have a lifetime warranty.
Order Information:
1.25G SFP Copper
--------------------------------------------------------------------------------------

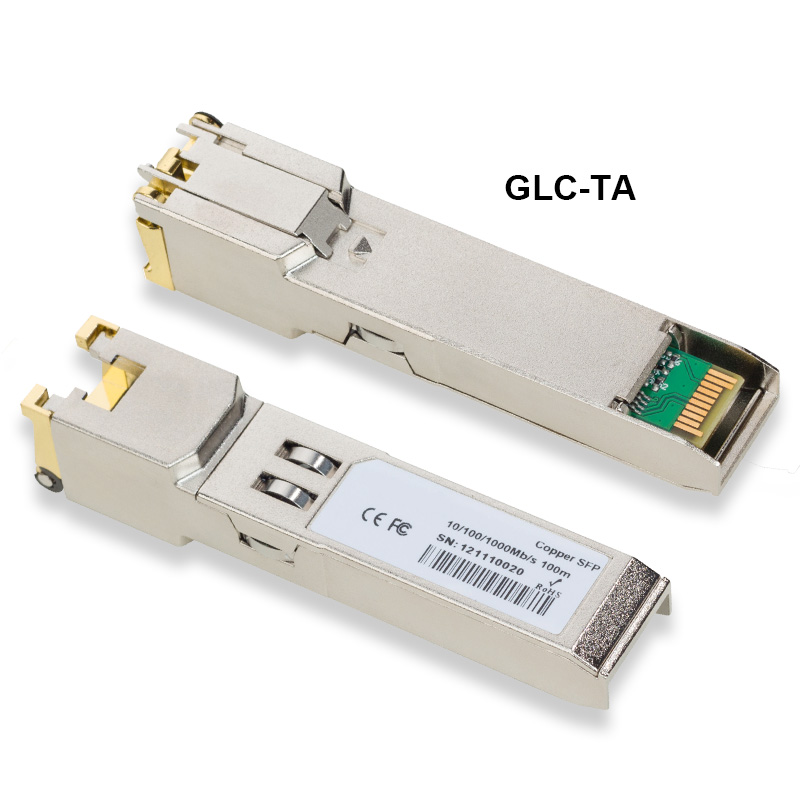

GLC-TA
10/100/1000BASE-T SFP copper RJ45 100m transceiver
GLC-T
1000BASE-T SFP Copper RJ45 100m Transceiver
1.25G SFP LC Dual Fiber
--------------------------------------------------------------------------------------
GLC-SX-MM
1000BASE-SX SFP 850nm 550m DDM Transceiver
SFP-GE-S
1000BASE-SX SFP 1310nm 2km MMF DDM Transceiver

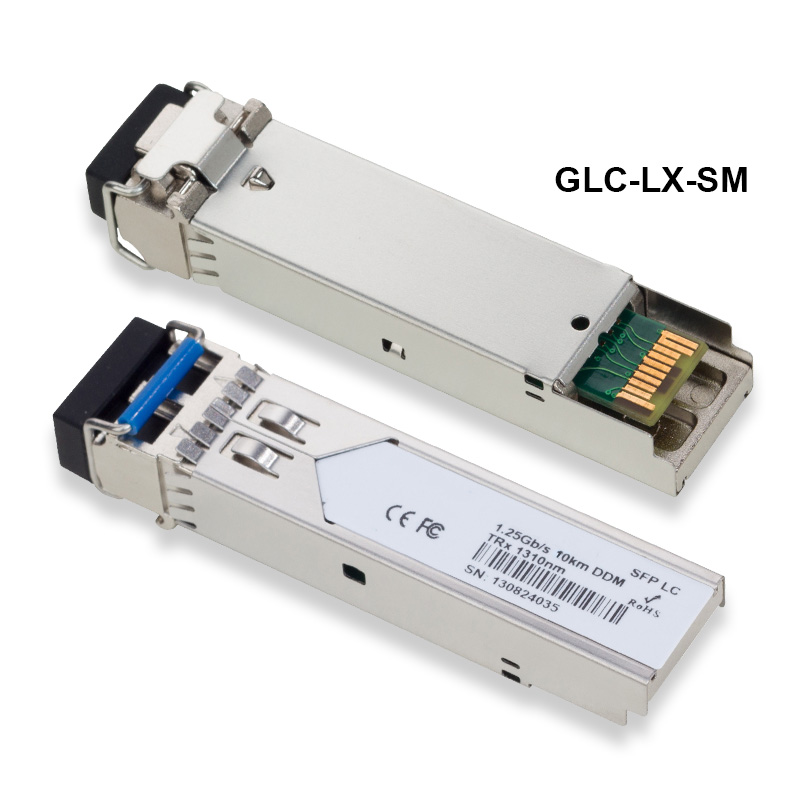

GLC-LX-SM-10
1000Base-LX/LH SFP 1310nm 10Km SMF DDM Transceiver
GLC-LX-SM-20
1000BASE-LX/LH SFP 1310nm 20km SMF DDM Transceiver
GLC-EX-SM
1000BASE-EX SFP 1550nm 40km DDM Transceiver

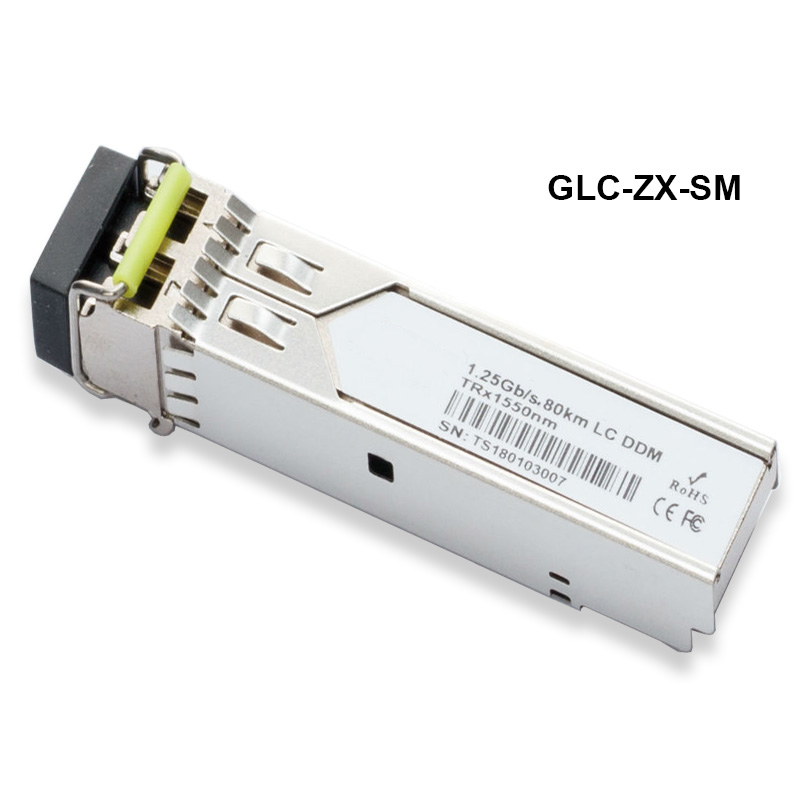

GLC-ZX-SM
1000BASE-ZX SFP 1550nm 80km DDM Transceiver

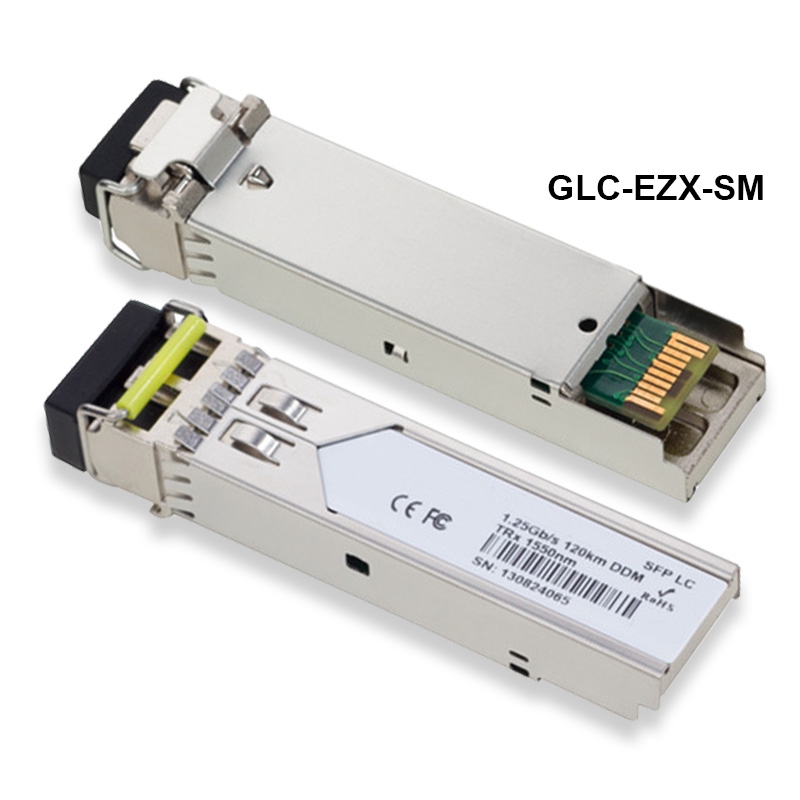

GLC-EZX-SM
1000BASE-EZX SFP 1550nm 120km DDM Transceiver
1.25G SFP BIDI
--------------------------------------------------------------------------------------
GLC-BX-U
1000BASE-BX BiDi SFP TX1310nm/RX1550nm 500m DDM Transceiver
GLC-BX-D
1000BASE-BX BiDi SFP TX1550nm/RX1310nm 500m DDM Transceiver
GLC-BX-20U
1000BASE-BX BiDi SFP TX1310nm/RX1550nm 20km DDM Transceiver
GLC-BX-20D
1000BASE-BX BiDi SFP TX1550nm/RX1310nm 20km DDM Transceiver
GLC-BX20-UA
1000BASE-BX-U BiDi SFP TX1310nm/RX1490nm 20km DDM Transceiver
GLC-BX20-DA
1000BASE-BX-D BiDi SFP TX1490nm/RX1310nm 20km DDM Transceiver
GLC-BX-40U
1000BASE-BX BiDi SFP TX1310nm/RX1550nm 40km DDM Transceiver
GLC-BX-40D
1000BASE-BX BiDi SFP TX1550nm/RX1310nm 40km DDM Transceiver
GLC-BX40-UA
1000BASE-BX-U BiDi SFP TX1310nm/RX1490nm 40km DDM Transceiver
GLC-BX40-DA
1000BASE-BX-D BiDi SFP TX1490nm/RX1310nm 40km DDM Transceiver
GLC-BX-80U
1000BASE-BX BiDi SFP TX1490nm/RX1550nm 80km DDM Transceiver
GLC-BX-80D
1000BASE-BX BiDi SFP TX1550nm/RX1490nm 80km DDM Transceiver
1.25G SFP CWDM
--------------------------------------------------------------------------------------
CWDM-SFP-1G-40
1.25G CWDM SFP 40km DDM Transceiver (1270nm to 1610nm)
CWDM-SFP-1G-80
1.25G CWDM SFP 80km DDM Transceiver (1270nm to 1610nm)
CWDM-SFP-1G-120
1.25G CWDM SFP 120km DDM Transceiver (1270nm to 1610nm)
1.25G SFP DWDM
--------------------------------------------------------------------------------------
DWDM-SFP-1G-40
1.25G DWDM SFP 40km DDM Transceiver
DWDM-SFP-1G-80
1.25G DWDM SFP 80km DDM Transceiver
DWDM-SFP-1G-120
1.25G DWDM SFP 120km DDM Transceiver
-------------------------------------------------------------------------------------
Notes
1. Transceivers are available in various Transmission Distance and other options.
2. Please let us know the compatible brand you request. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear, etc.)
