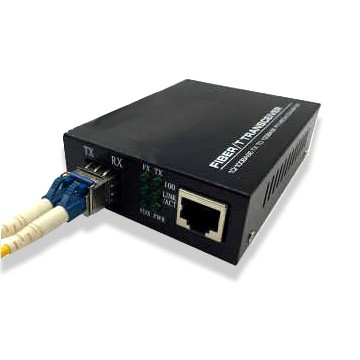

SFP to 10/100/1000Base-Tx Media Converter
P/N: MCG11-SFP
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union
MCG11-SFP SFP to 10/100/1000Base-Tx Media Converter
MCF11-SFP SFP to 10/100Base-Tx Media Converter
MCG11-2SFP2RJ45 10/100/1000Base-Tx 2xRJ45 to 2xSFP Media Converter
Features
- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3xauto-negotiation
-Works at 10 Mbps or 100 Mbps, full or half-duplex mode, or 1000 Mbps full-duplex mode
-One SFP slot for Gigabit links
-Extends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)
-Supports auto MDI/MDIX function
-Status LED for easy monitoring of device status
-Supports jumbo frame size 9K bytes
-Supports independent LFP function
-External power supply
-FCC Class A & CE approved
Interface
-1 x Ethernet port (RJ45) 10/100/1000Base-Tx
-1 x Optical port (SFP) 1000Base-Fx
Optical Port
-Available for 1310nm and 1550nm Single mode, and 850nmMulti mode;
-Transfer Distance: up to 120km;
-Connectors: SFP
-Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber,50, 62.5 and 100um on multi-mode fiber
Ethernet Port
-Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x
-Available speed: force 10Mbps, force 100Mbps, force 1000Mbpsand auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
-Connectors: RJ-45 Connector; MDI/MDI-X connectionauto-sensing
LED Indicators
-Power, FDX, Status, Speed, FX Link/Act, TX Link/Act
Power Requirement
Input: 5VDC 1A
Physical Characteristics
-Housing: Metal enclosure
-Dimensions: 94 x 70 x 26mm (D x W x H)
-Weight: 0.28kg
Environmental Limits
-Operating Temperature: 0°Cto 50°C
-Storage Temperature: -20°Cto 70°C
-Operating Humidity: 10% to 90% RH
-Storage Humidity: 5% to 90% RH
