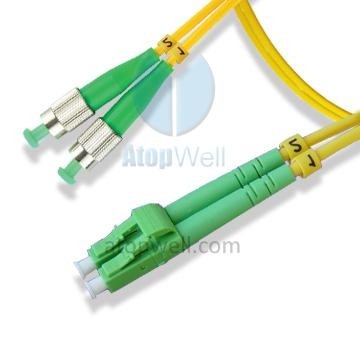

SM Fiber optic Patch cord FC/APC to LC/APC Duplex
P/N: PC92A4AD2R-XX
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
SM Fiber optic Patch cord FC/APC to LC/APC Duplex
Description:
Jacket : Yellow PVC
Fiber: 9/125µ SM
Connectors: 2x FC green and 2x LC green
Connectors: 2x FC green and 2x LC green
XX=length, any length is available upon your request
Other colors cable Jacket is available
FC patch cords are specifically designed for telecommunication applications. It is fully compatible with existing FC hardware, meeting NTT-FC standards. NTT-FC is a trademark of NTT Advanced Technology Corp. It provides true non-optical disconnect performance.
The LC connectors used in our patch cord are small form-factor fiber optic connectors resembling
miniature SC connectors with high quality 1.25mm zirconia ferrules and push-pull
latching mechanism. They are fully compatible with existing LC hardware.
Parameter:
Item | SM | MM | |
| Polishing Type | UPC | APC | PC |
| Insertion Loss | <=0.3dB | <=0.3dB /0.5dB(MTRJ) | |
Customize | |||
| Return Loss | >=55dB | >=60dB | / |
Customize | |||
| Durability | <=0.2dB increase Max. | ||
| Operating Temperature | -20℃ to +75℃ | ||
| Storage Temperature | -40℃ to +75℃ | ||
Product Package:
Each patch cord is packaged individually and individually identified for traceability,
a test certification is supplied with each assembly.
We can provide custom packaging to your specification.
