DWDM Mux Demux
P/N: DWDM
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
DWDM Mux Demux
DWDM MUX DEMUX Modules with 100GHz/200GHz channel spacing can be used to combine or separate wavelength channels at standard ITU grid. We supply the common configuration including 4, 8, 16, 32 and 40channels. These DWDM modules passively multiplex the optical signal outputs from 4 or more electronic devices, and send them over a single optical fiber and then de-multiplex the signals into separate, distinct signals for input into electronic devices at the other end of the fiber optic link.

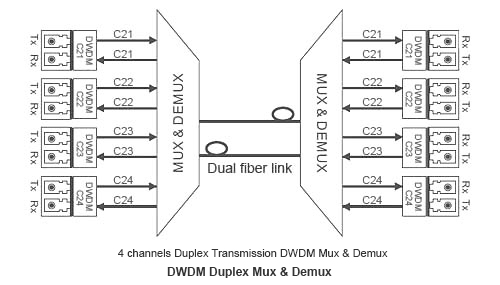

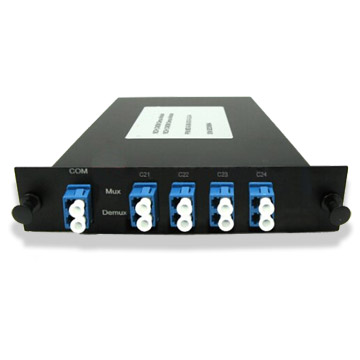

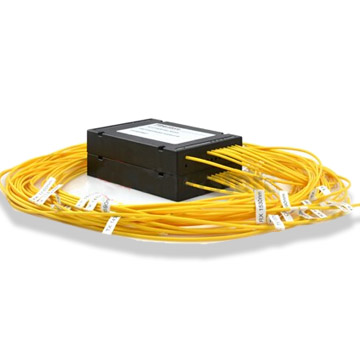

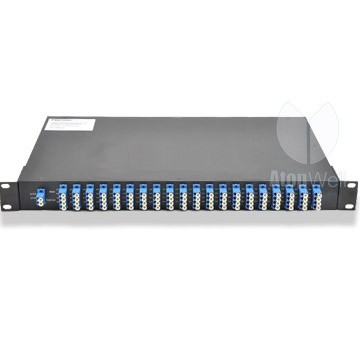

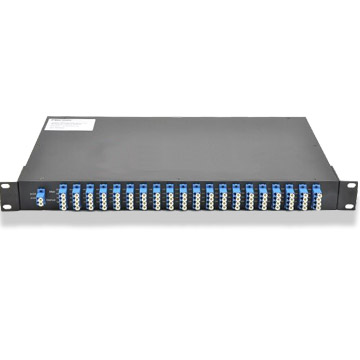

Our standard package types of DWDM MUX DEMUX are Module ABS Plastic Box, 19' Rack Mount Chassis and LGX Metal Cassette Box. We also supply custom package to meet customers' requirements. All the DWDM MUX DEMUX modules provide excellent optical performance and high reliability to ease of fiber handling and power saving solution.
Order Information:
DWDM | X | X | XX | X | XX | X | X | XX |
Package Module | Channel Spacing | Number of Channels | Configuration | 1st Channel | Fiber Type | Fiber Length | In/Out Connector | |
A=ABS Box R=19” Rack L=LGX Box
| 1=100GHz 2=200GHz | 04=4 Channel 08=8 Channel 16=16 Channel 32=32 Channel 40=40 Channel | M=Mux D=Demux | 21=Ch21 …… 34=Ch34 …… 50=Ch50 …… | B=Bare fiber 1=900um Loose tube 2=2mmCable 3=3mmCable | 1=1m 2=2m S=Specify | 0=None 1= SC/APC 2= SC/UPC 3=LC/APC 4=LC/UPC 5=FC/APC 6= FC/UPC 7=ST/UPC S=Specify |
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||
Mux | Demux | Mux | Demux | Mux | Demux | ||||
Channel Wavelength (nm) | ITU 100GHz Grid / ITU 200GHz Grid | ||||||||
Center wavelength Accuracy (nm) | ±0.1 | ||||||||
Channel Spacing (nm) | 100 | ||||||||
Channel Passband (@-0.5dB bandwidth (nm) | >0.25 | ||||||||
Insertion Loss (dB) (100GHz / 200GHz ) | ≤1.8 / ≤1.6 | ≤3.7 / ≤3.5 | ≤5. 5 / ≤5. 2 | ||||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||||
Channel Ripple (dB) | 0.3 | ||||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||
Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||
Polarization Dependent Loss (dB) | <0.1 | <0.1 | <0.15 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||||
Directivity (dB) | >50 | ||||||||
Return Loss （dB） | >45 | ||||||||
Maximum Power Handling (mW) | 300 | ||||||||
Opterating Temperature (℃) | -5~+75 | ||||||||
Storage Temperature (℃) | -40~85 | ||||||||
Package dimension (mm) | ABS Box or LGX Box or 1U(2U) Rackmount | ||||||||
Note: Specifications may change without notice. Above specification are for device without connector. | |||||||||
