Fiber Optic Patch Panel sliding type 1U 2U with Rail & without Rail - PPS3
P/N: PPS3
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union

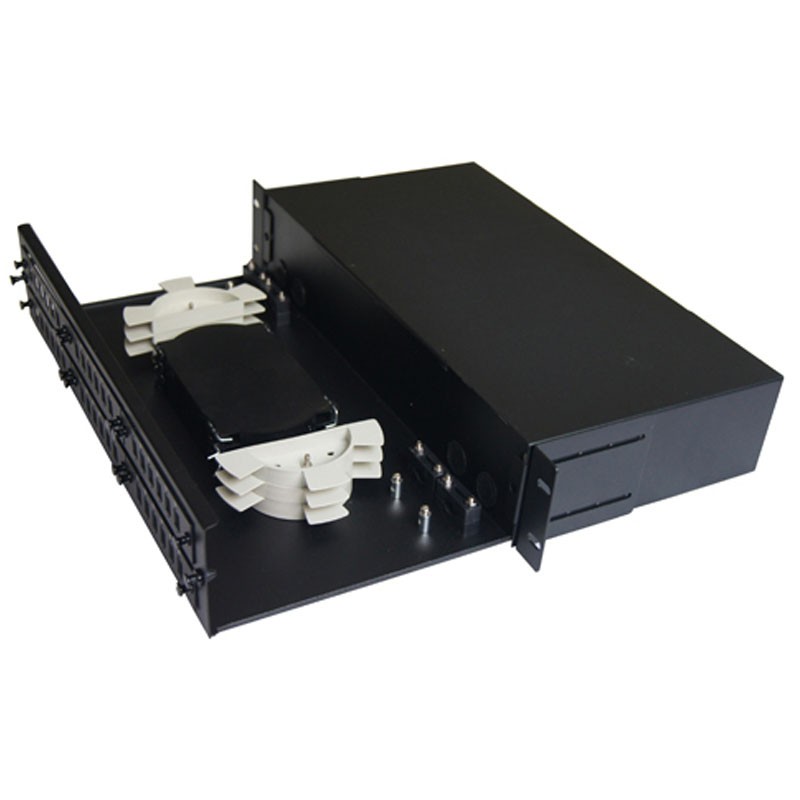

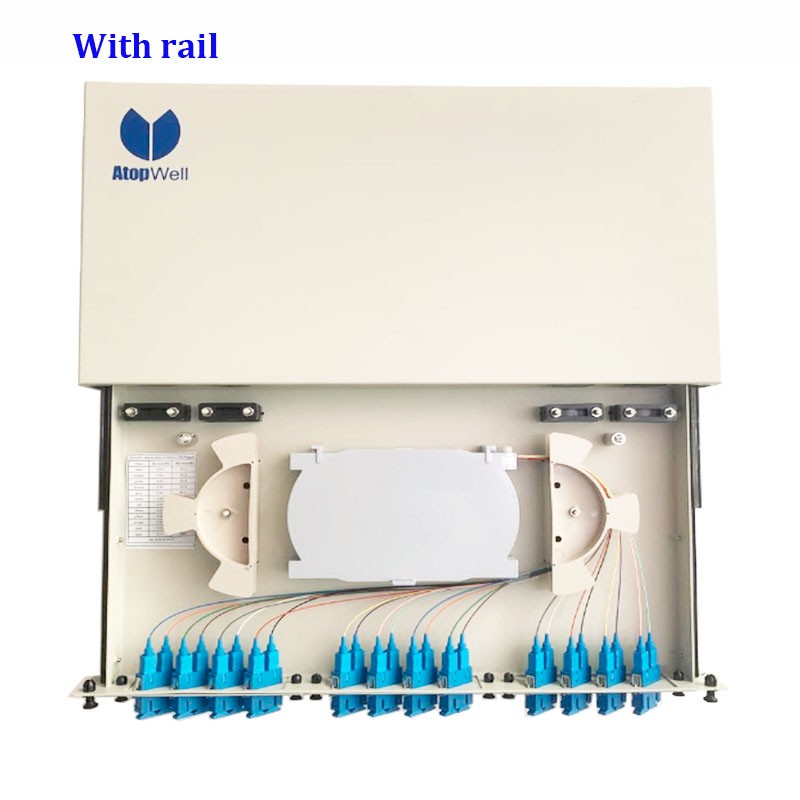

Fiber Optic Patch Panel sliding type 1U 2U with Rail & without Rail
Features:
- 19’’ sliding-out type , rack mounted
-The body is made of cold rolled steel sheet with electrostatic spraying.
- 4 cable entrance at rear, 3 parts front panel
- available for the installation of FC,SC,ST,LC adapter
- 1-2U, 12-96cores are available
- Max.capacity 96fibers
Order Information:
P/N | Dimension (mm) | Adapter type | Port Qty | Max.Capacity (cores) |
PPS3-SC12 | 480x250x1U | SC simplex | 12 | 12 |
PPS3-SC24 | 480x250x1U | SC simplex | 24 | 24 |
PPS3-SCD24 | 480x250x1U | SC duplex | 24 | 48 |
PPS3-SC48 | 480x250x2U | SC simplex | 48 | 48 |
PPS3-SCD48 | 480x250x2U | SC duplex | 48 | 96 |
