Fiber optic Field Installable connector LC/UPC
P/N: FIC2PS5S
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
Fiber optic Field Installable connector LC/UPC Direct Through
Order Information:
FIC2PS5SPB Direct Through Field Installable connector LC/UPC SM for drop cable 3x2mm
FIC2PS5S3B Direct Through Field Installable connector LC/UPC SM for fiber cable 3.0mm
FIC2PS5S1B Direct Through Field Installable connector LC/UPC SM for fiber cable 0.9mm with cable clip
FIC2PS5SBB Direct Through Field Installable connector LC/UPC SM for bare fiber 250um with cable clip
If your fiber cable is 2.0mm, suggest you remove the jacket to 0.9mm then install
The product features:
1. Using non bury fiber structure. All-metal fiber clamp. High-temperature resistance & high humidity resistance
1. Using non bury fiber structure. All-metal fiber clamp. High-temperature resistance & high humidity resistance
2. Ultrastrong environmental adaptation ability. Except the ordinary environment, our fast connector can be quickly fixed and works stably at various severe environment (severe cold, dust, high-temperature, high humidity)
3. Insertion loss≤0.5dB (avg.0.3dB),RL≥45dB
4. Few installation special tools, construction is simple and fast, high reliability, the follow-up maintenance is almost free after the installation.
4. Few installation special tools, construction is simple and fast, high reliability, the follow-up maintenance is almost free after the installation.
5. High rate of finished products, above 99%
6. Reuse
Specification:
Series | LC/ST | LC/ST | LC/ST | LC/ST |
Applied fiber cable | Drop Cable 3x2mm | Fiber cable 3.0mm | Fiber cable 0.9mm | Bare fiber 250um |
Fiber optic Dia. | 125um | 125um | 125um | 125um |
Bare Fiber Dia. | 250um | 250um | 250um | 250um |
Fiber Mode | SM | SM | SM | SM |
Installation time | <=40s | <=40s | <=40s | <=40s |
The fixing yield of construction site | >=99% | >=99% | >=99% | >=99% |
Insertion Loss | <=0.5dB (avg.<=0.3dB) | <=0.5dB (avg.<=0.3dB) | <=0.5dB (avg.<=0.3dB) | <=0.5dB (avg.<=0.3dB) |
Return Loss | >=45dB | >=45dB | >=45dB | >=45dB |
Cable clamp force | >30N | >20N | >10N | >10N |
Using temperature | -40 to +75℃ | -40 to +75℃ | -40 to +75℃ | -40 to +75℃ |
Reuse times | >=50times | >=50times | >=50times | >=50times |
Normal service life | 30years | 30years | 30years | 30years |

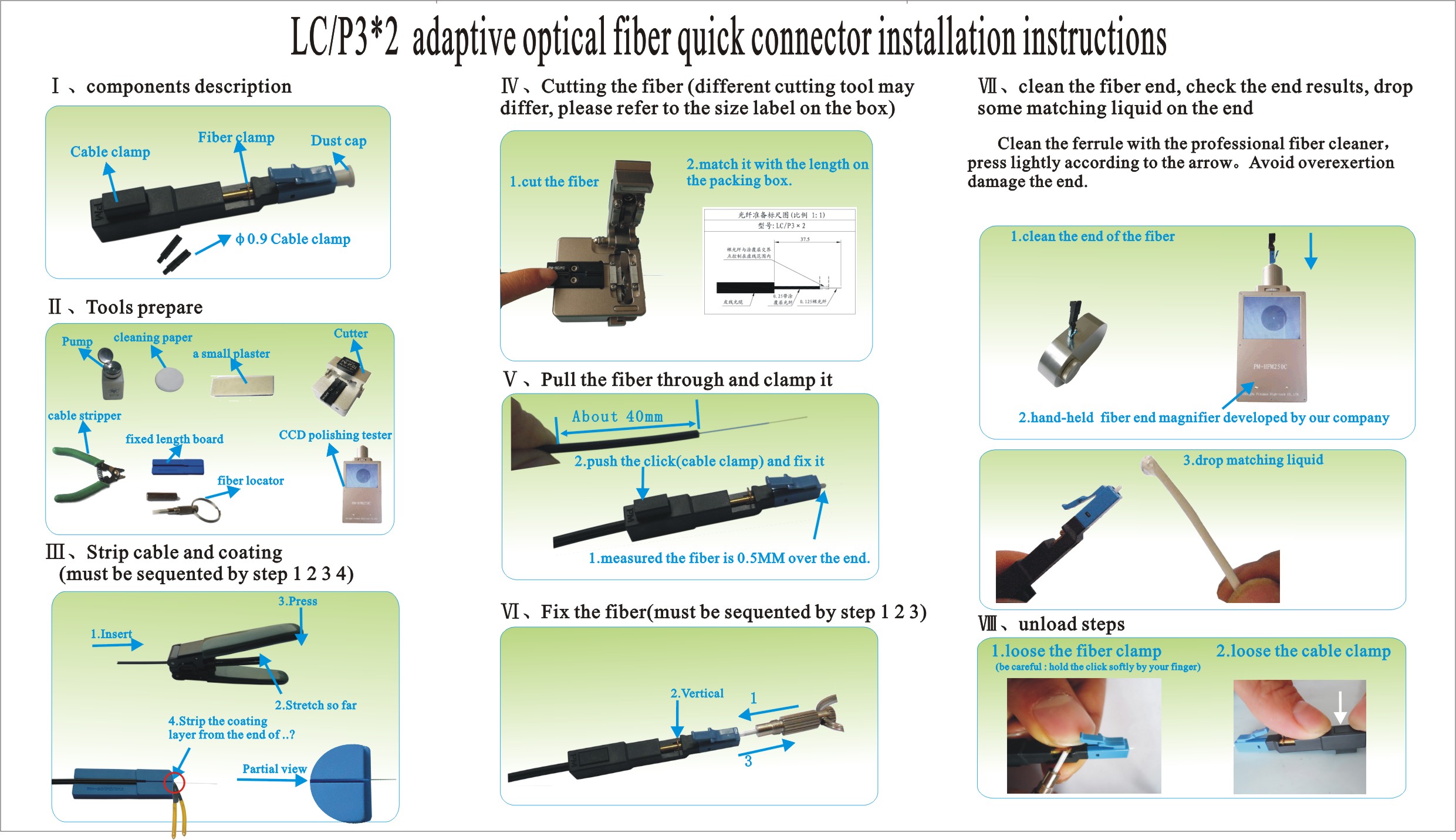

Installation Manual：

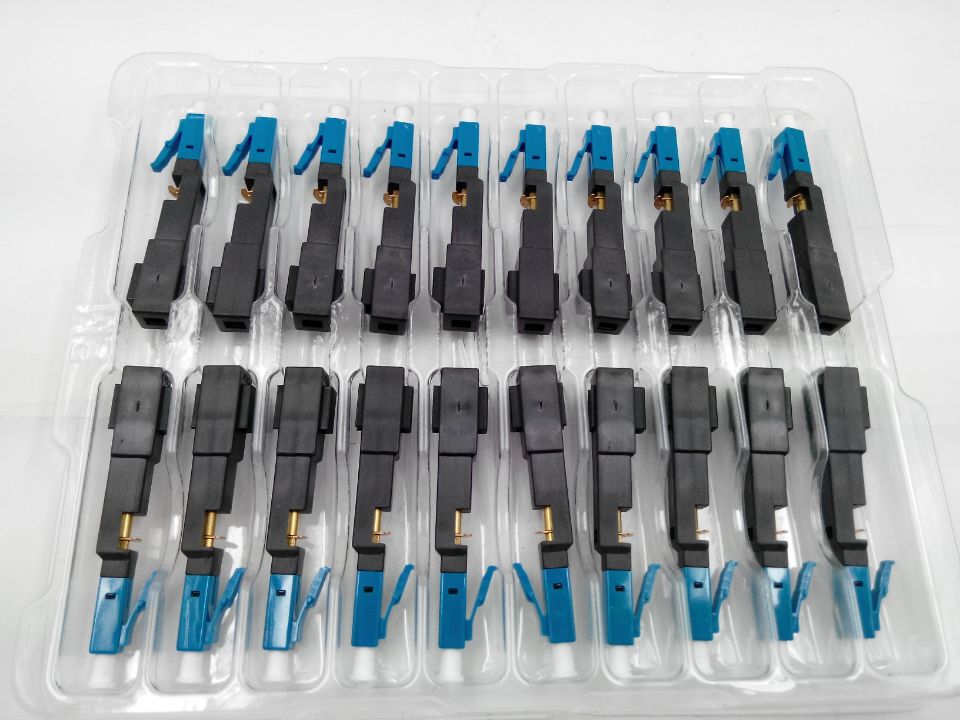

Package:
Include 1: 20pcs connectors
Include 2: 1set small tool for free.
