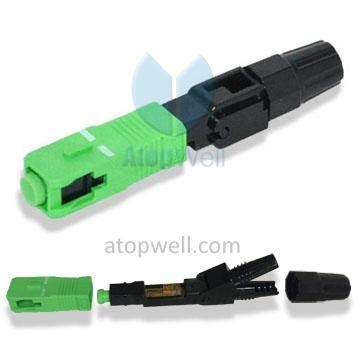

SC/APC Field Installable connector simplex SM
P/N: FIC1AS5S3G
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
SC/APC Field Installable connector simplex SM
Order Information:
FICE1PS5S3B pre-embedded fiber Quick connector SC/UPC SM for drop cable , 3.0 and 2.0 cable
FICE1AS5S3G pre-embedded fiber Quick connector SC/APC SM for drop cable , 3.0 and 2.0 cable
FICE1PM6S3I pre-embedded fiber Quick connector SC/UPC MM for drop cable , 3.0 and 2.0 cableDescription：
Field Installable Connector sometimes is also called The Fast Connector or Field Assembly Connector and Quickly Assembly Fiber connector.
Field Installable Connector (FIC) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.
Field Installable Connector (FIC) is a perfect solution for field working in FTTH connection, as it enables quick assembling in field with stable performance. FIC facilitates field engineers to install, maintain and repair the FTTH networks and indoor terminal in a highly efficient and convenient manner.
FIC contains pre-embedded fiber with ferrule that is pre-polished in the factory, ensuring perfect connection to filed fiber, sufficient protection on terminal equipment interface and minimizing the insertion loss.
The Fast connectors have a potential fiber connector station time of less than 30 seconds, including preparation. Apart from the standard fiber preparation tools, no other specialized tools are required in conjunction with the PC range of connectors; however APC variants require some additional tooling.
Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connectors Series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself.
Application：
1. Fiber connecting when FTTH project processing
2. Used to restore and maintenance when fiber-cut
3. Distribution in LAN area
4. Suitable for connecting with optic splice closure, ODF, optical cross connection cabinet
2. Used to restore and maintenance when fiber-cut
3. Distribution in LAN area
4. Suitable for connecting with optic splice closure, ODF, optical cross connection cabinet
Feature:
1. Precision mechanical dimension
2. Fast, easy to installation
2. Fast, easy to installation
3. No polish required
4. No Epoxy required
5. Reusable
6. Low insertion loss
7. Ultra low back reflection
8. For 3.0mm, 2.4mm, 2.0mm optical cable and ftth drop cable.
6. Low insertion loss
7. Ultra low back reflection
8. For 3.0mm, 2.4mm, 2.0mm optical cable and ftth drop cable.
Specifications:
Fiber Type: Single-mode and multi-mode
Insertion Loss: PC<= 0.3dB ; APC<=0.3dB
Return Loss: PC>=45dB; APC>=50dB
Polishing Type: PC or APC
Connection Method: Push-On
Fiber Type: Single-mode and multi-mode
Insertion Loss: PC<= 0.3dB ; APC<=0.3dB
Return Loss: PC>=45dB; APC>=50dB
Polishing Type: PC or APC
Connection Method: Push-On
Time Needed for Assembling: Less than 2 minute
Total Connector Length: 62mm
Operation Temperature:-40℃ to 75℃
