Vertical Fiber Optic Splice Closure Max capacity 144 fibers 5 holes VM5RS-144

P/N: VM5RS-144

Packaging: Neutral or OEM service optional

MOQ: 1 Piece

Certificate: RoHS Compliant Material

Lead Time: 3-7 days

Payment Method: T/T, Western Union

Product Detail

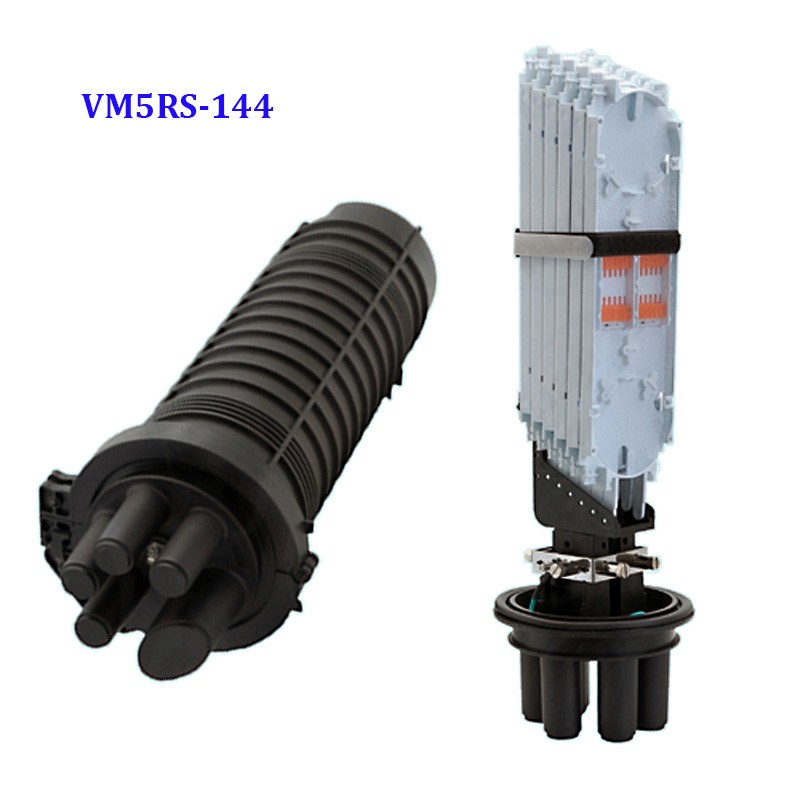

VM5RS-144 Vertical Fiber Optic Splice Closure Max capacity 144 fibers 5 holes

Features:

- Maximum capacity: 144 fibers

- Seal way: Heat shrink sealing

- Cable inlet/outlet: 5 cable ports (3 in and 3 out)

- The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- The use of reusable components to open seal in order to ensure a good airtight waterproof performance.

- It can be reopened and reused without changing sealing material.
- Does not require special tools, easy to install and open the duplicate.

- The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.

- The application of temperature :-40℃～65℃

Order Information:

P/N	*Size(mm) ODL**	Fiber Capacity	No.of Trays	Cable Ports	Cable Diameter (mm)
VM5RS-24	Φ210*540	24	1	5	7-22mm
VM5RS-48		48	2	5	7-22mm
VM5RS-72		72	3	5	7-22mm
VM5RS-96		96	4	5	7-22mm
VM5RS-144		144	6	5	7-22mm
