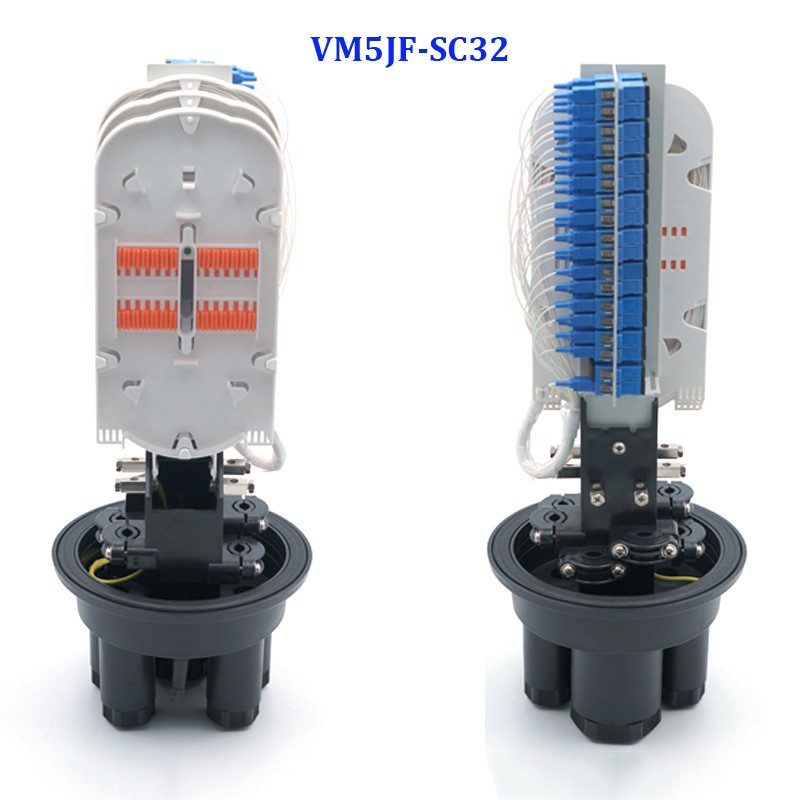

Vertical Fiber Optic Splice Closure for PLC Splitter 5 holes VM5JF-SC32
P/N: VM5JF-SC32
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union
VM5JF-SC32 Vertical Fiber Optic Splice Closure for PLC Splitter 5 holes
Features:
- Maximum capacity: 144/288 fibers
- Seal way: Threaded mechanical sealing
- Cable inlet/outlet: 5 cable ports (3 in and 3 out)
- It is especially suitable for using PLC Splitter
- It applies to PLC Splitter with Max ratio 1x 2:32 or 2x 2:16
- The Max quantity of SC adapter is 36pcs.
- There are various optional sealing accessories of soft cable
- The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
- It can be reopened and reused without changing sealing material.
- Does not require special tools, easy to install and open the duplicate.
- The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.
- The application of temperature :-40℃～65℃
Specification:
Type | VM5JF-144/288 (distribution type) | VM5JF-SC32 (PLC Splitter type) |
Size (mm) | Φ230*435 | Φ230*435 |
Cable in /out | 3 / 3 | 3 / 3 |
Cable diameter (mm) | Φ7～Φ18 | Φ7～Φ18; Various optional sealing accessories |
Splice tray capacity | 24 (single fiber) / or 72 (single fiber) | 24 (single fiber) |
Max splice tray number | 6/4 | 3～5 |
Max core capacity | 144 / 288 | 72～120 (single fiber) |
Max splitting | — | 1:8(2pcs), 1:16(2pcs), 1:32(1pc) |
Sealing type | Threaded mechanical seal, silicon rubber | Threaded mechanical seal, silicon rubber |
Order Information:
P/N | Dimension | Outlet Cable type | Max.Splitting Ratio | Capacity of splice tray | Max qty of splice tray | Max capacity |
VM5JF-SC32 | Φ230X435MM | Φ3 circle soft cable; figure 8 soft cable; Φ5~7cable; Self-support soft cable | 1:32(1pc)/1:16(2pcs) | 24cores | 3 | 72 |
VM5JF-LC32 | 4 | 96 | ||||
VM5JF-SC16 | 1:16(1pc)/1:8(2pcs) | 4 | 96 | |||

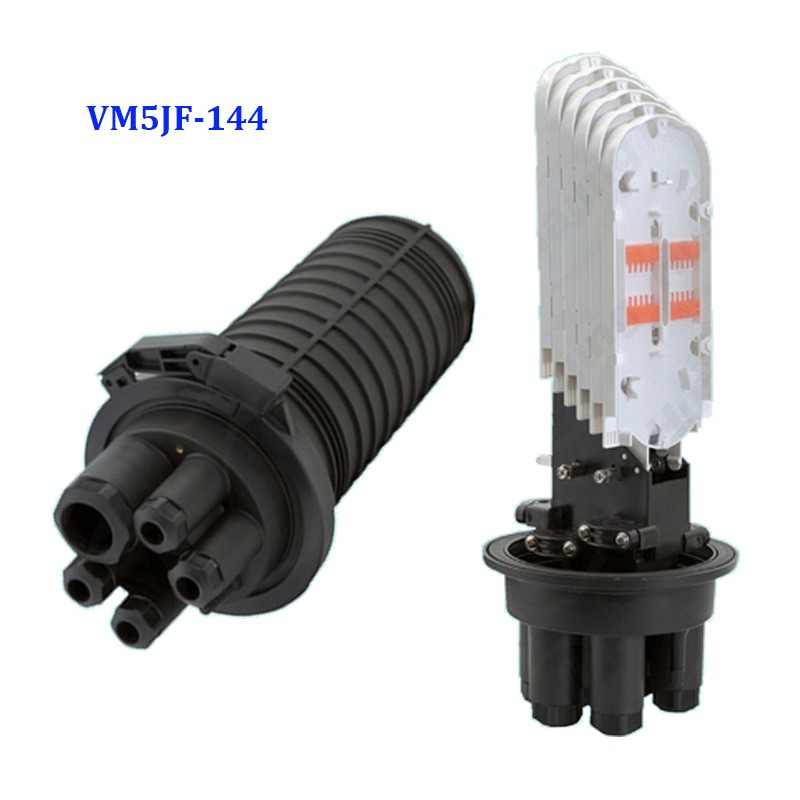

VM5JF-144 | None | 6 | 144 |
